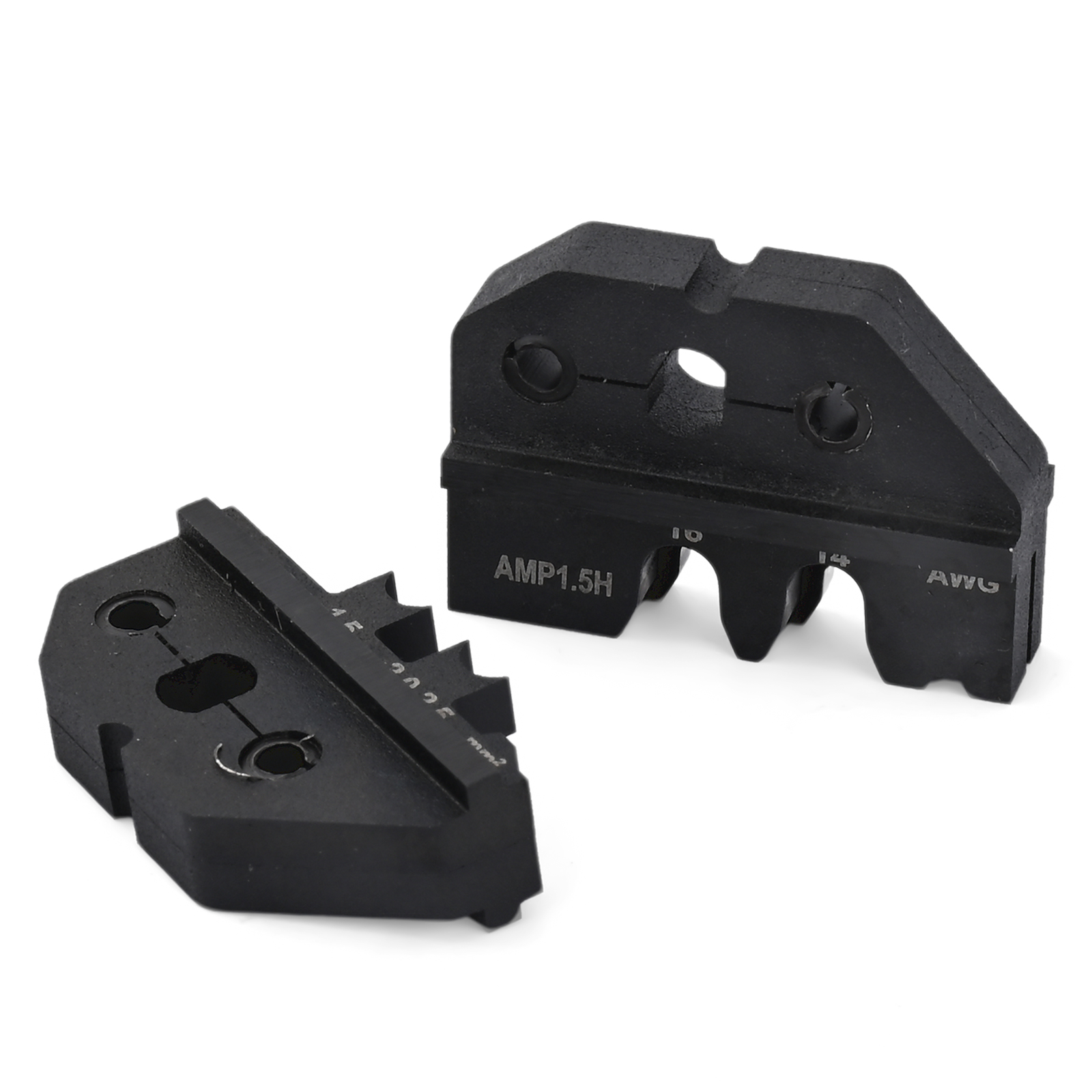

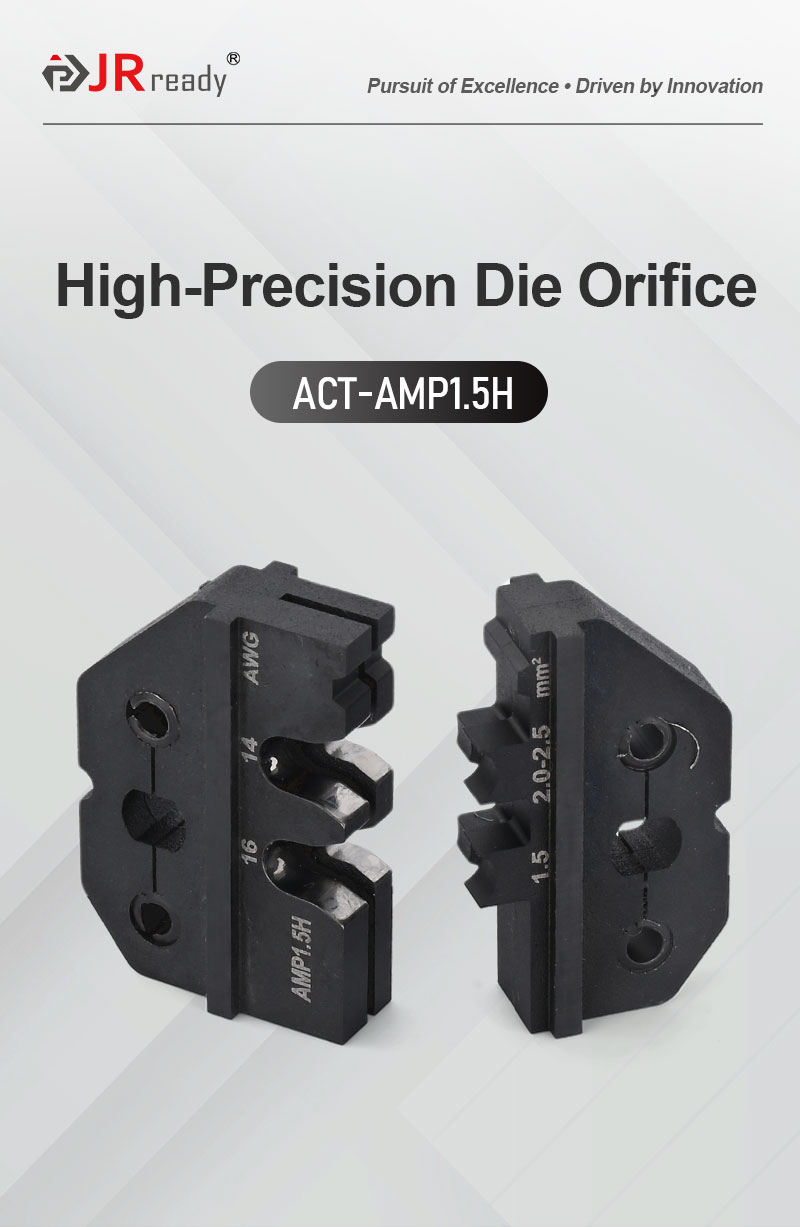

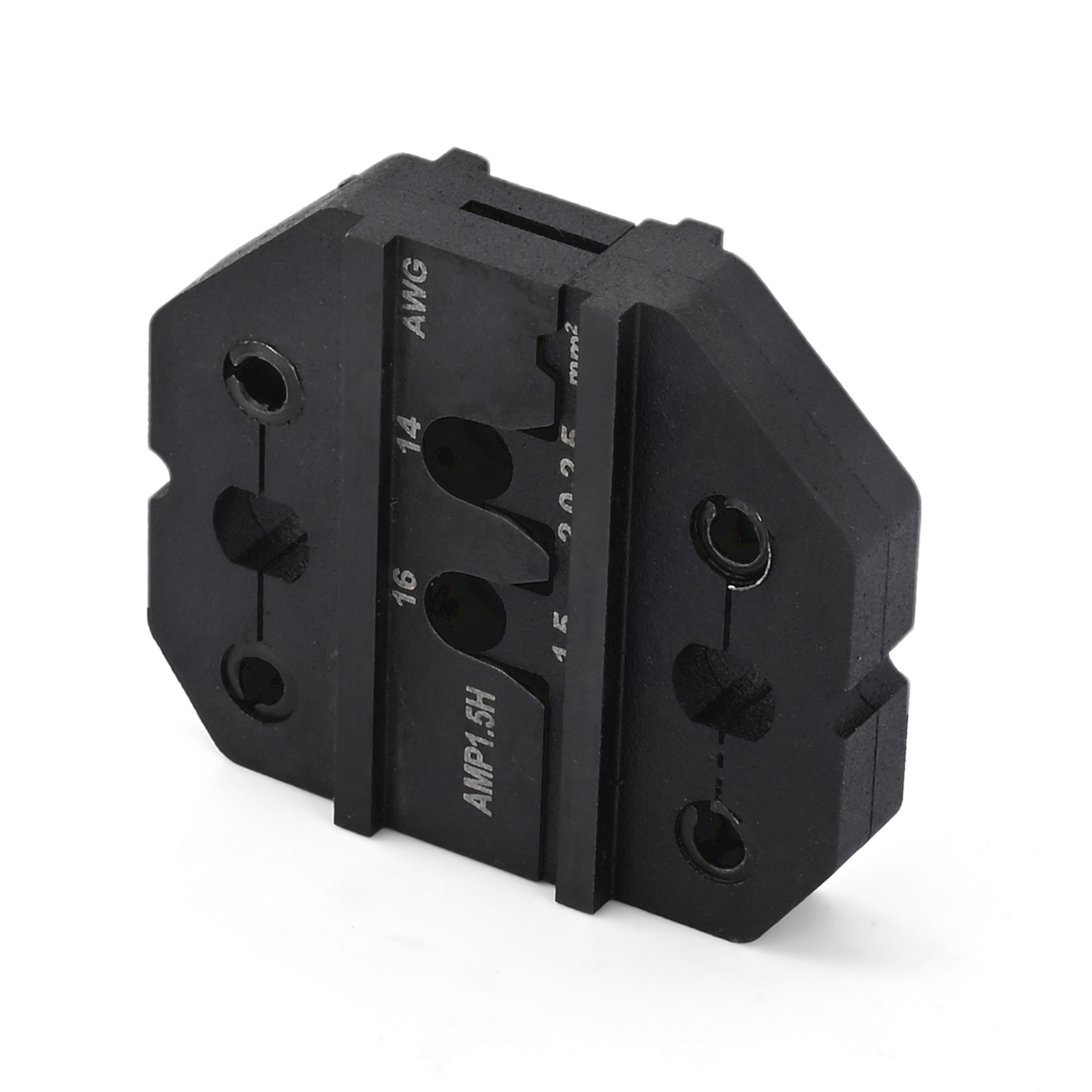

JRready ACT-AMP1.5H ​​Crimp Die​​

1. For SUPERSEAL 1.5 Series Terminals

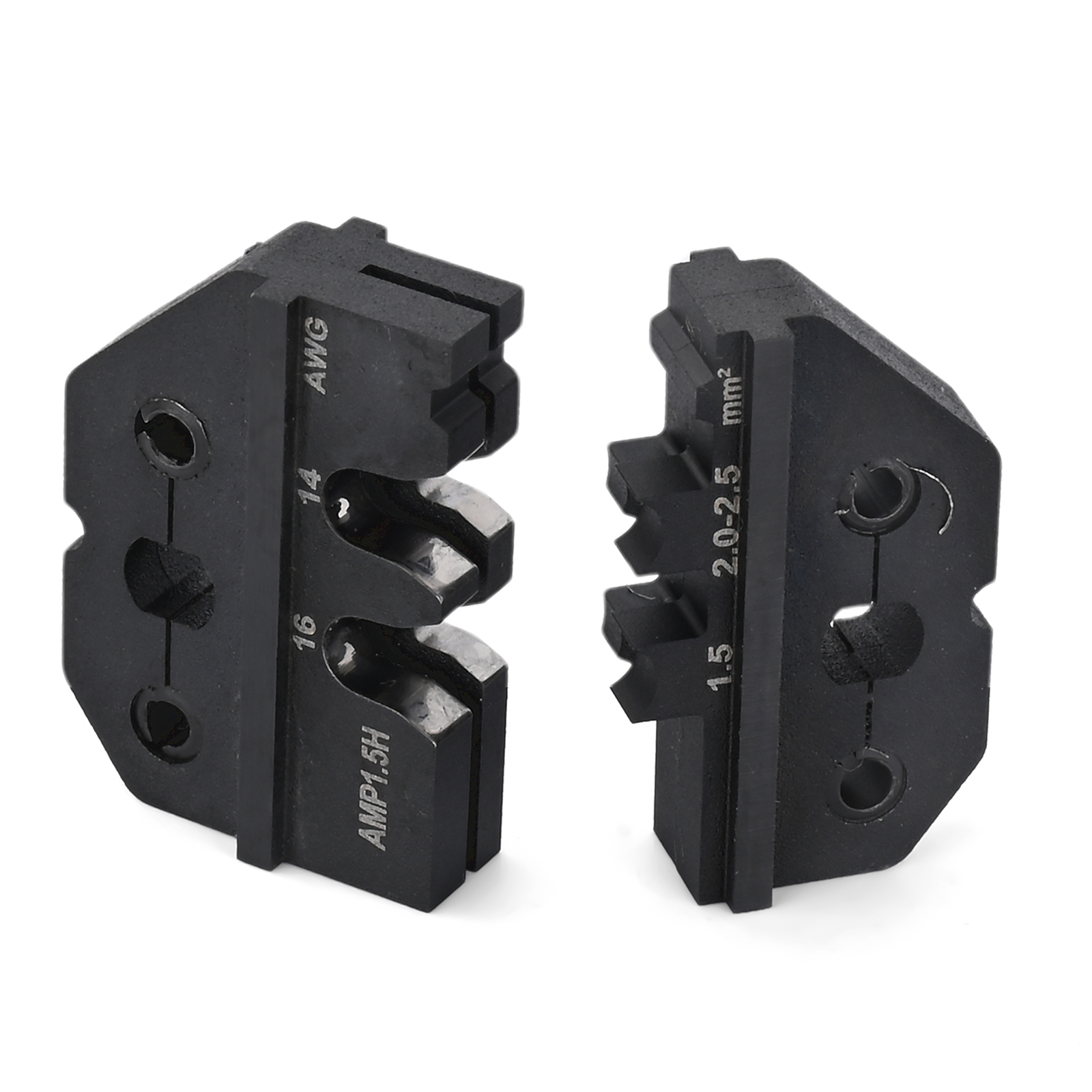

2. 2Cavities for Different Wire Ranges: 14AWG(2.0-2.5mm²)、16AWG(1.5mm²)

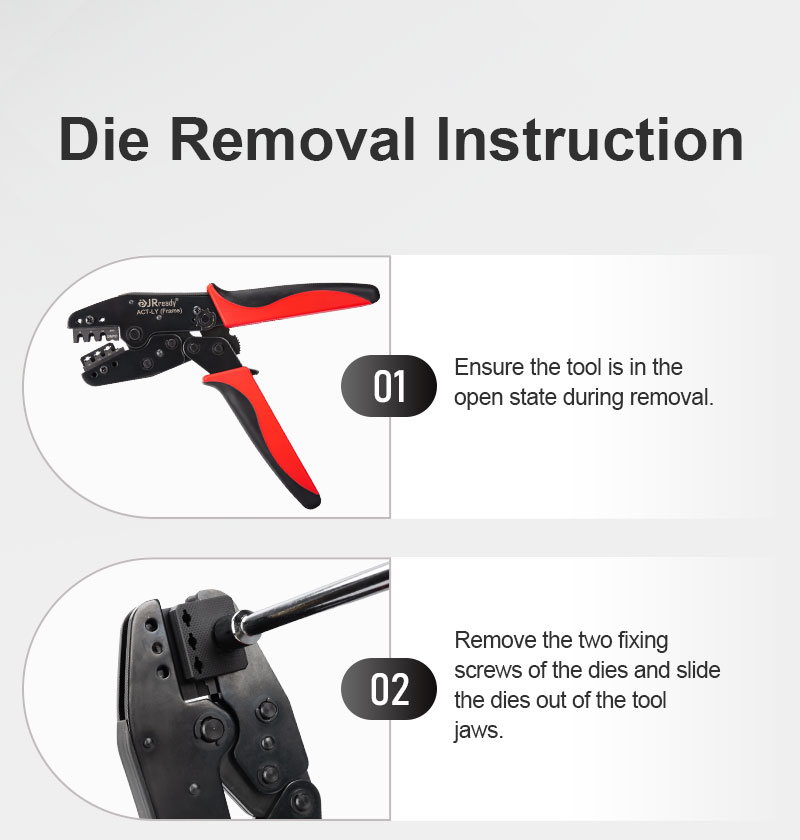

3. Compatible with JRready ACT-LY Crimp Tool Frame
Contact Us
Brand JRready Part Number ACT-AMP1.5H
Category ​​Crimp Die​​ Colour Black

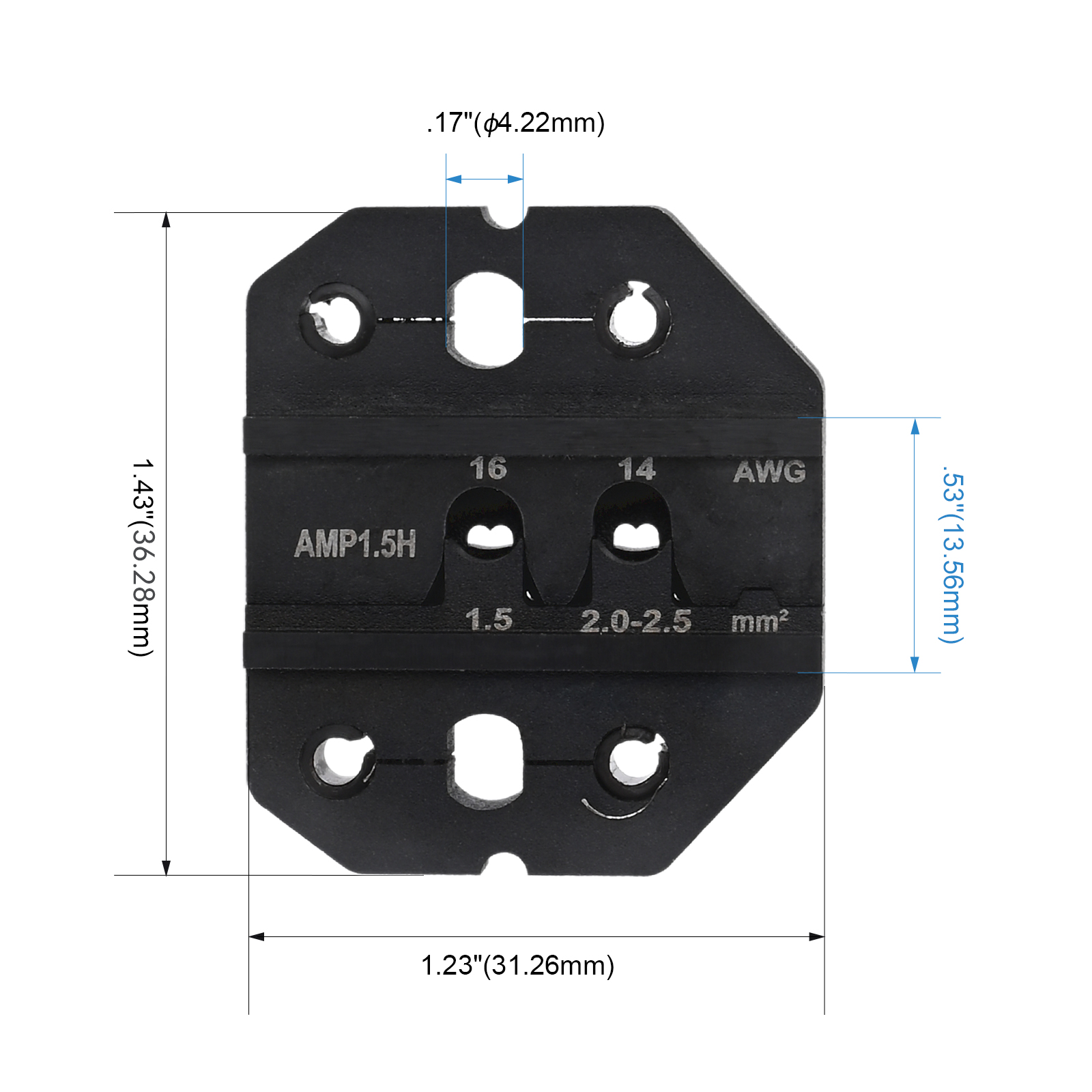

Material Mold Steel​​ Dimension 31.26*36.28mm
Country of Origin China Weight 47g
Application ​​​​Suitable for crimping Automotive SUPERSEAL 1.5 series Connectors (16-14AWG)​







Product Introduction
